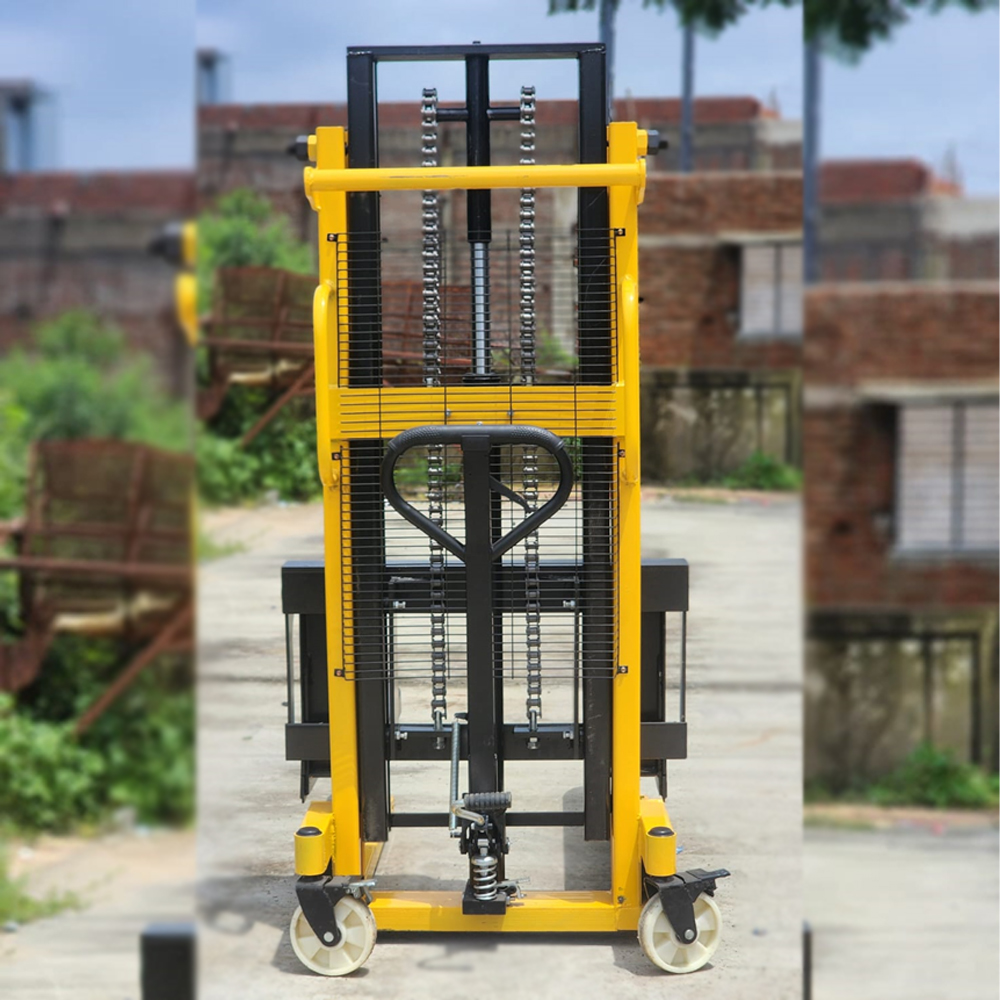

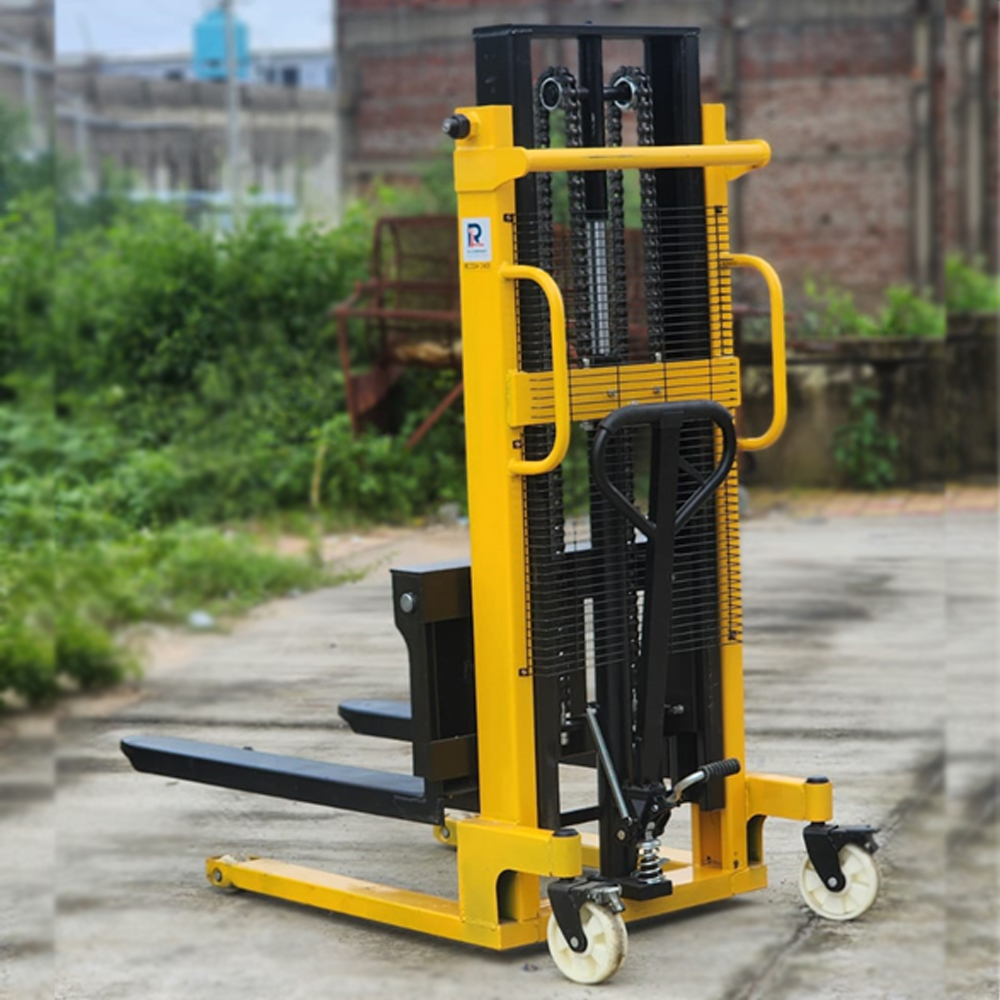

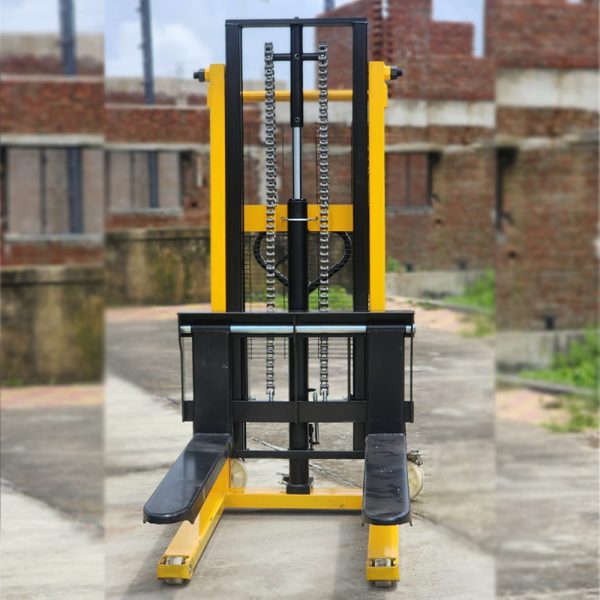

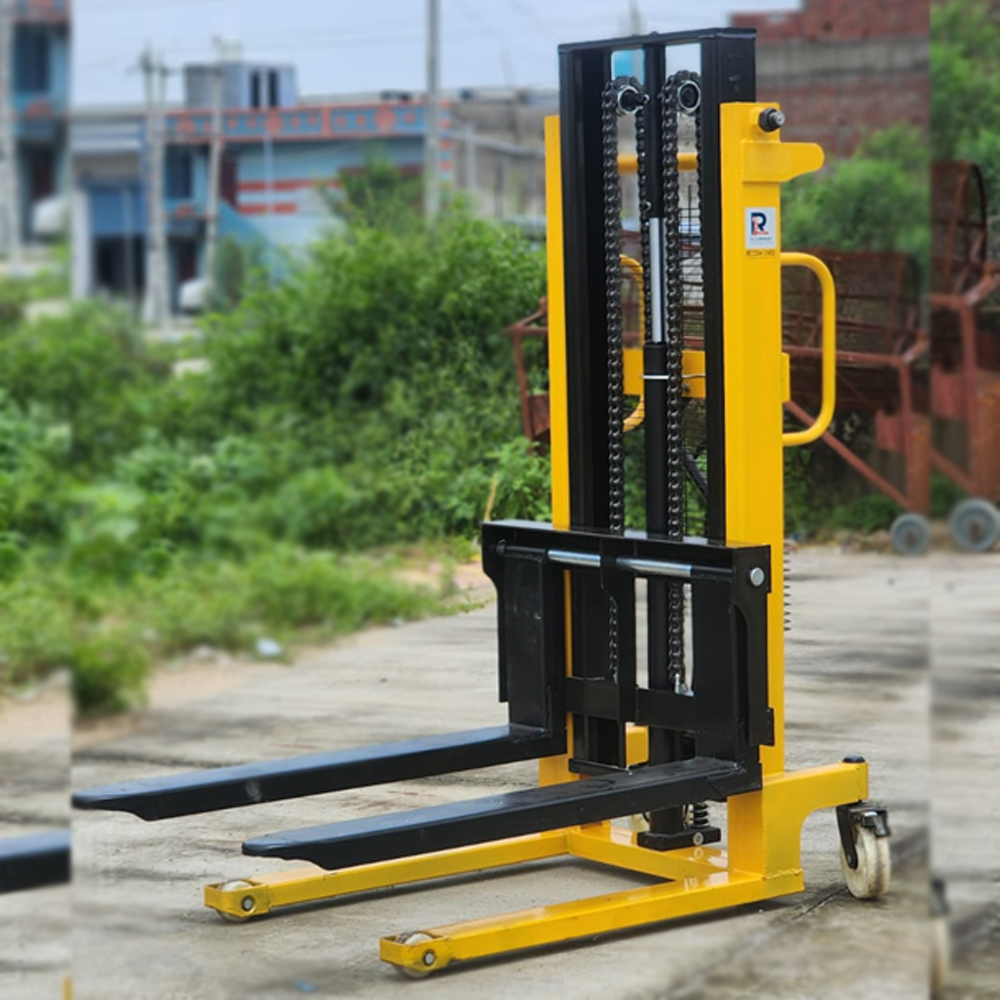

Manual Stacker 2M

Name: Manual Stacker 2M
SKU: 1587
Price: 62000.00 INR
Availability: InStock

Rs.62,000.00

Model No. : RE108

Specification:

Cap: 1000 kgs
Lifting ht: 2000 Mtr.
We, the Material Handling Equipment’s solutions provider offer unique range of Hand Stackers at competitive price range. Our Hand Stackers provides a safe and efficient way to endless material application at Distribution Center, Logistics Companies, Industries etc.

Category: Hydraulic Stacker

Description

Features:

Basic capacity from 1500 kg.
Lift heights: Mono and telescopic masts from 1.6 Mtr.
Special Fork Length & Width.
Robust construction.
Pump assembly includes neutral position for controlled handling of load.
Pistons and cylinder are hard chrome Plated.
Double sealed high pressured polyurethane seals are used to prevent leakage.
Industry’s Best Warranty – 1 year.
Lifting speed – 14 mm/stroke.
Our Stackers are suitable, where lifting is primary and the transport distance is short

Product Code		RE-108
Rated Capacity	Kg	1000
Load Center	mm	600
Max. Fork Height	mm	2000
Fork Length	mm	1150
Fork Width	mm	300-850
Turning Radius	mm	1500
Wheelbase	mm	1100
Front Wheel Distance	mm
Overall Length	mm	1500
Overall Width	mm	400 – 865
Overall Height	mm	1500
Self-Weight	kg	285 Kg Aprox
