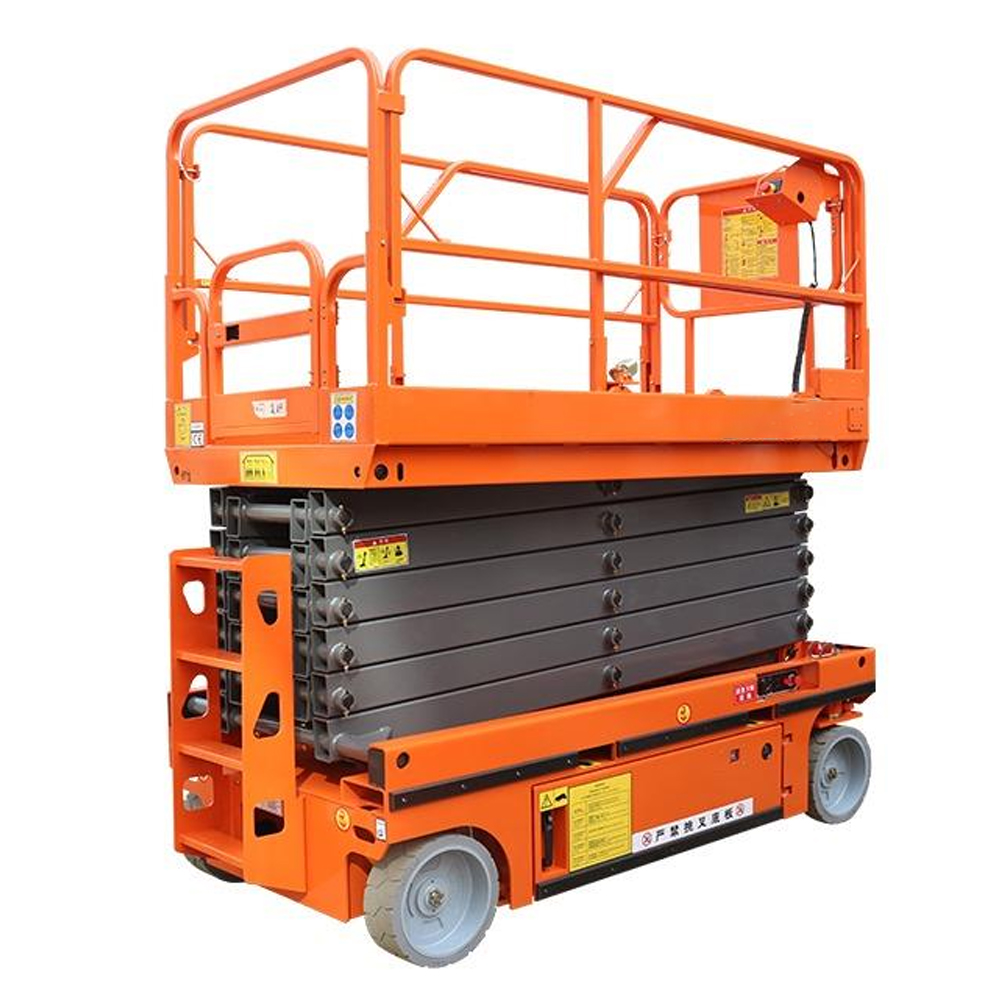

Self Propelled Scissor Lift 12 Mtr
Rs.1,410,000.00
Model No. :RE118-SELF PROPELLED SCISSOR LIFT
Specification:
Cap : 320 KG
Max ht : 12 Mtr
Features
- Hydraulic pump with built in overload relief.
- Full length deck beam for maximum support.
- Solid plate scissor legs for maximum rigidity.
- Chequered Plate deck and lip with chain.
- All pivot points equipped with lubricated nipples.
- Lowering brake valve to prevent platform free fall.
- Completely sealed, weather resistant Cylinders and piston.
- Motor, controls, push button factory pre wired and tested.
Description
| Specification | Value |
|---|---|
| Max. Working Height | 14m A |
| Max. Platform Height | 12m B |
| Load Capacity | 320kg |
| Table Extension Size | 0.9m G |
| Extended Platform Safe Working Load | 113kg G |
| Work Platform Size (L x W x H) | 2.3×1.15 F×1.1m |
| Minimum Ground Clearance | 0.1/0.02m |
| Wheelbase | 1.89m |
| Turning Radius (Outer Wheel) | 0/3.1m |
| Drive Motor / Lifting Motor | 24V/3.3kW |
| Lifting Speed | 3-5m/min |
| Machine Travel Speed (Closed State) | 3.5km/h |
| Machine Travel Speed (Lifting State, 3m Height) | 0.8km/h |
| Battery | 4x12V/300Ah |
| Charger | 24V/30A |
| Maximum Climbing Ability | 25% |
| Maximum Allowable Angle of Work | 1.50°/30° |
| Tire Size (Drive Wheel) | Φ381x127mm |
| Overall Dimensions C*D*E (L x W x H, Guardrail Not Folded) | 2.45 x 1.18 x 2.6m |
| Overall Dimensions C*D*E (L x W x H, Folding Guardrail) | 2.45 x 1.18 x 2m |
| Total Weight | 2950kg |
